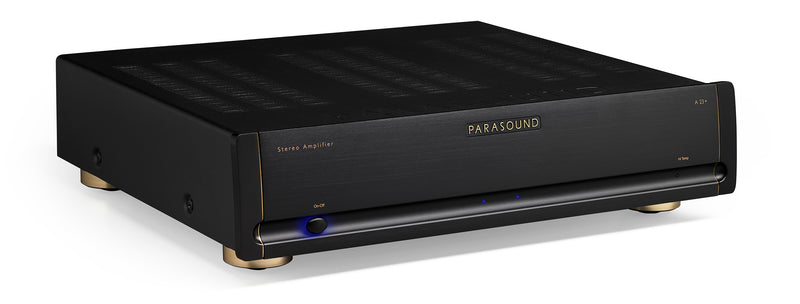

Parasound A23+ 2 Channel Power Amplifier

Vendor Parasound
Regular price $2,299.00
Sale price $2,299.00 Regular price $2,800.00
Sale Call To Order
Unit price
/per

Changes from the original A 23→A 23+

  • 125 → 160 Watts (8Ω)
  • 225 → 240 Watts (4Ω)
  • 400 → 500 Watts (bridged)
  • Filter cap: 40,000 uF →54,400 uF
  • Crosstalk (20kHz): 63dB → 70dB
  • Transformer size: 1.0 kVA → 1.1 kVA
  • Refined Halo cosmetic with aluminum end caps & gold highlights

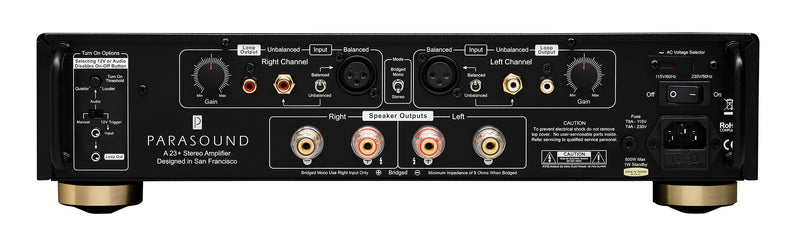

  • Updated rear panel with heavy duty speaker terminals from HINT 6
  • Upgraded internal gold on gold audio connections
  • Updated auto turn on circuit

All Features

  • 160 watts x 2 @ 8 Ω RMS, both channels driven
  • 240 watts x 2 @ 4 Ω RMS, both channels driven
  • 500 watts x 1 @ 8 Ω, in bridged mode
  • Circuitry designed by legendary John Curl
  • High bias Class A/AB operation
  • 45 amperes peak current per channel
  • Stable with speaker impedance dips below 2 Ω
  • Balanced inputs with discrete circuits
  • Heavy-duty 24k gold-plated 5-way speaker binding posts
  • Gold-plated RCA input & loop output jacks
  • Direct-coupled signal path, no capacitors or inductors
  • DC Servo and relay protection circuits
  • AC turn-on inrush surge protection with relay bypass
  • JFET input stage, MOSFET driver stage
  • 12 beta-matched 15 ampere, 60 MHz bipolar output transistors
  • 1.1 kVA shielded toroid transformer w/ independent windings for each channel
  • Independent power supplies for input stage, driver stage and output stage
  • 54,400 µF filter capacitors for output stages
  • Full power is rated all the way down to 5Hz for unrestricted low-end bass
  • Harris hyper-fast soft-recovery bridge diode rectifiers
  • Automatic turn-on by 12 V trigger or audio sensing
  • 2 rack space chassis with rear carry handles
  • Rack mount hardware available separately
  • Available in silver or black

Power Output – Stereo Mode (0.06% THD)
160 watts x 2, 8 Ω both channels driven
240 watts x 2, 4 Ω both channels driven

Power Output – Stereo Mode (0.9% THD)
210 watts x 2, 8 Ω both channels driven
300 watts x 2, 4 Ω both channels driven

Power Output – Bridged Mode (0.06% THD)
500 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended

Power Output – Bridged Mode (0.9% THD)
600 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended

*All Power measurement are at 120 VAC,
RMS continuous power, full audio band (20 Hz - 20 kHz)

Current Capacity
45 amps peak, per channel

Slew Rate
> 130 volts per microsecond

Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB

Total Harmonic Distortion (THD)
< 0.06 % at full power
< 0.03 % at typical listening levels

IM Distortion
< 0.04 %

TIM
Unmeasurable

Inter-channel Crosstalk
> 85 dB at 1 kHz
> 70 dB at 20 kHz

Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)

Total Gain
29 dB

Input Sensitivity for 28.28 V Out (8 Ω Load)
Unbalanced: 1 V
Balanced: 1 V per leg

S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 107 dB, input shorted, unweighted

Damping Factor
> 800 at 20 Hz

DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements
2 mV - 10 mV

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

Dimensions
Width: 17-1/4" (437 mm)
Depth: 15"-1/4" (388 mm)
Depth, with cables 17" (432 mm)
Height, with feet: 4-1/8" (105 mm)
Height, without feet: 3-1/2" (89 mm), 2U

Net Weight
27 lb. (12.2 kg)

Shipping Weight
34 lb. (14.4 kg)

Power Requirement
Standby: <1 Watt
Idle (no music playing): 75 Watts
Typical Listening levels: 125 Watts
Maximum: 800 Watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz
AC mains voltage is set on rear panel

Details

Changes from the original A 23→A 23+

  • 125 → 160 Watts (8Ω)
  • 225 → 240 Watts (4Ω)
  • 400 → 500 Watts (bridged)
  • Filter cap: 40,000 uF →54,400 uF
  • Crosstalk (20kHz): 63dB → 70dB
  • Transformer size: 1.0 kVA → 1.1 kVA
  • Refined Halo cosmetic with aluminum end caps & gold highlights
  • Updated rear panel with heavy duty speaker terminals from HINT 6
  • Upgraded internal gold on gold audio connections
  • Updated auto turn on circuit

All Features

  • 160 watts x 2 @ 8 Ω RMS, both channels driven
  • 240 watts x 2 @ 4 Ω RMS, both channels driven
  • 500 watts x 1 @ 8 Ω, in bridged mode
  • Circuitry designed by legendary John Curl
  • High bias Class A/AB operation
  • 45 amperes peak current per channel
  • Stable with speaker impedance dips below 2 Ω
  • Balanced inputs with discrete circuits
  • Heavy-duty 24k gold-plated 5-way speaker binding posts
  • Gold-plated RCA input & loop output jacks
  • Direct-coupled signal path, no capacitors or inductors
  • DC Servo and relay protection circuits
  • AC turn-on inrush surge protection with relay bypass
  • JFET input stage, MOSFET driver stage
  • 12 beta-matched 15 ampere, 60 MHz bipolar output transistors
  • 1.1 kVA shielded toroid transformer w/ independent windings for each channel
  • Independent power supplies for input stage, driver stage and output stage
  • 54,400 µF filter capacitors for output stages
  • Full power is rated all the way down to 5Hz for unrestricted low-end bass
  • Harris hyper-fast soft-recovery bridge diode rectifiers
  • Automatic turn-on by 12 V trigger or audio sensing
  • 2 rack space chassis with rear carry handles
  • Rack mount hardware available separately
  • Available in silver or black
Specifications

Power Output – Stereo Mode (0.06% THD)
160 watts x 2, 8 Ω both channels driven
240 watts x 2, 4 Ω both channels driven

Power Output – Stereo Mode (0.9% THD)
210 watts x 2, 8 Ω both channels driven
300 watts x 2, 4 Ω both channels driven

Power Output – Bridged Mode (0.06% THD)
500 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended

Power Output – Bridged Mode (0.9% THD)
600 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended

*All Power measurement are at 120 VAC,
RMS continuous power, full audio band (20 Hz - 20 kHz)

Current Capacity
45 amps peak, per channel

Slew Rate
> 130 volts per microsecond

Frequency Response
5 Hz - 100 kHz, +0/-3 dB
20 Hz - 20 kHz, +0/-0.25 dB

Total Harmonic Distortion (THD)
< 0.06 % at full power
< 0.03 % at typical listening levels

IM Distortion
< 0.04 %

TIM
Unmeasurable

Inter-channel Crosstalk
> 85 dB at 1 kHz
> 70 dB at 20 kHz

Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)

Total Gain
29 dB

Input Sensitivity for 28.28 V Out (8 Ω Load)
Unbalanced: 1 V
Balanced: 1 V per leg

S/N Ratio
> 112 dB, input shorted, IHF A-weighted
> 107 dB, input shorted, unweighted

Damping Factor
> 800 at 20 Hz

DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements
2 mV - 10 mV

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

Dimensions
Width: 17-1/4" (437 mm)
Depth: 15"-1/4" (388 mm)
Depth, with cables 17" (432 mm)
Height, with feet: 4-1/8" (105 mm)
Height, without feet: 3-1/2" (89 mm), 2U

Net Weight
27 lb. (12.2 kg)

Shipping Weight
34 lb. (14.4 kg)

Power Requirement
Standby: <1 Watt
Idle (no music playing): 75 Watts
Typical Listening levels: 125 Watts
Maximum: 800 Watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz
AC mains voltage is set on rear panel
