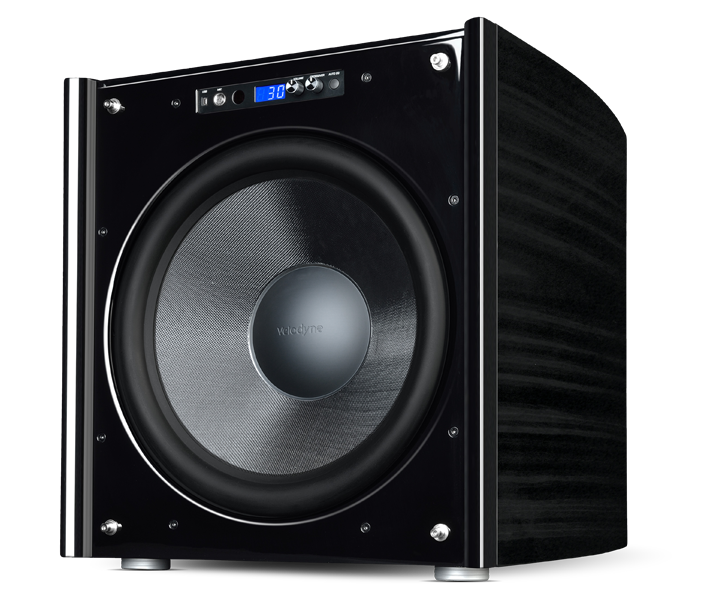

velodyne DD10plus

Vendor Velodyne
Regular price $8,800.00
Sale price $8,800.00 Regular price
Sale Call To Order
Unit price
/per

Driver10″ forward firingAmplifier Class D3000 watts dynamic1250 watts RMS powerFrequency Response: OverallFrequency Response: (± 3 dB)10.5 – 300 Hz18.7 – 120 HzTHD< 0.5 % (typical)High Pass Crossover80 or 100 Hz at 6 dB/octaveLow Pass Crossover40 Hz to 199 Hz (variable in 1 Hz increments) selectable slopeDefault: 80 Hz @ 24 dB/OctavePhase0 to 180 degrees (variable in 15 degree increments)PolarityAdjustable (+/-)Magnet Structure35 lbs.Voice CoilSix-layer, 65 mmConeFiberglass Rohacell LaminateInput LFE (Mono)Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10KInput L&RLine level (RCA & XLR)Input MicrophoneBalanced (Mini-XLR, cable included)Input Speaker Level (L&R)Bare wire, banana plugs, or spade lugsOutput Thru (L&R)Line level (RCA & XLR)Output (L&R), High-Pass (L&R)Line level (RCA & XLR)Included AccessoriesFull feature remote control, DD+ accessory kit and video cableFinishesBlack gloss ebony or Piano BlackDimensions (H/W/D) (includes feet and connectors)14.2” x 13” x 16.6” (36 x 33 x 42 cm)Shipping Weight (approx)34 kg

Specifications

Driver10″ forward firingAmplifier Class D3000 watts dynamic1250 watts RMS powerFrequency Response: OverallFrequency Response: (± 3 dB)10.5 – 300 Hz18.7 – 120 HzTHD< 0.5 % (typical)High Pass Crossover80 or 100 Hz at 6 dB/octaveLow Pass Crossover40 Hz to 199 Hz (variable in 1 Hz increments) selectable slopeDefault: 80 Hz @ 24 dB/OctavePhase0 to 180 degrees (variable in 15 degree increments)PolarityAdjustable (+/-)Magnet Structure35 lbs.Voice CoilSix-layer, 65 mmConeFiberglass Rohacell LaminateInput LFE (Mono)Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10KInput L&RLine level (RCA & XLR)Input MicrophoneBalanced (Mini-XLR, cable included)Input Speaker Level (L&R)Bare wire, banana plugs, or spade lugsOutput Thru (L&R)Line level (RCA & XLR)Output (L&R), High-Pass (L&R)Line level (RCA & XLR)Included AccessoriesFull feature remote control, DD+ accessory kit and video cableFinishesBlack gloss ebony or Piano BlackDimensions (H/W/D) (includes feet and connectors)14.2” x 13” x 16.6” (36 x 33 x 42 cm)Shipping Weight (approx)34 kg
