An ultra-compact stereo power amplifier, powered by Hypex Ncore technology, designed to enable Bi-amping, or use in BTL (Bridge Tied Load/Bridged) mode.
The AP-505 is a versatile stereo power amplifier based around a high-performance, TEAC-tuned, Hypex Ncore power amplifier module, housed within a compact and elegant case.
Capable of operating in bi-amp and BTL (Bridge Tied Load/Bridged) modes, in addition to conventional stereo operation, the AP-505 produces a maximum 130W + 130W of output power in stereo/bi-amp modes and 250W in BTL/bridged mode. At its heart is an Ncore power amplifier module, made by Hypex of the Netherlands and specially tuned by TEAC’s R&D team, for superlative sound quality

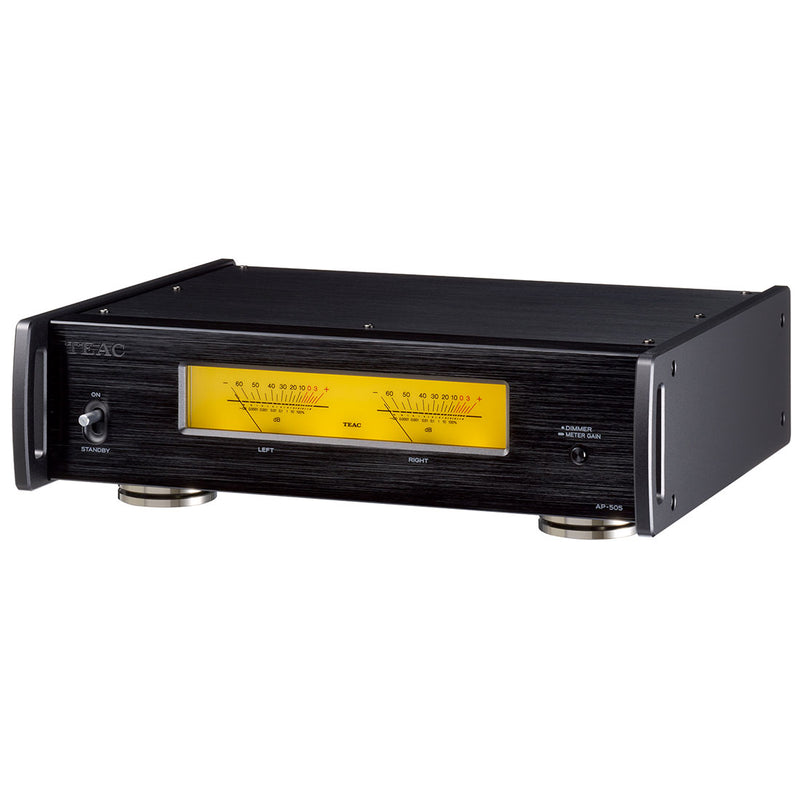

As for the exterior, lightweight aluminum-alloy panels cover a robust steel chassis. A pair of large level meters add visual interest when the amplifier is in action, while TEAC's patent-pending ‘Pin-point’ feet, located at three strategic positions on the underside, add incision to the sound, helping to create a more detailed and stable stereo image.

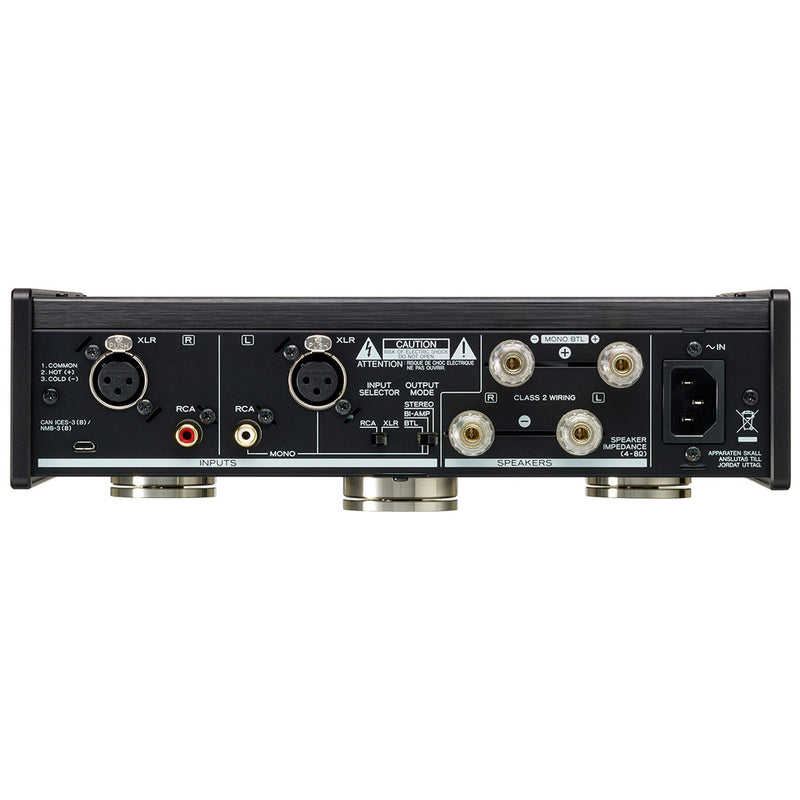

Amplifier sectionMaximum output powerStereo, Bi-amp modes130W + 130W (4Ω, 1kHz, JEITA)90W + 90W (8Ω, 1kHz, JEITA)BTL (Bridge) mode250W (8Ω, 1kHz, JEITA)Rate output overStereo, Bi-amp modes115W + 115W (4Ω, 1kHz, THD 0.8%)70W + 70W (8Ω, 1kHz, THD 0.8%)BTL (Bridge) mode220W (8Ω, 1kHz, THD 0.8%)Total harmonic distortion0.0015% (8Ω, 1kHz, 12.5W, JEITA)Signal-to-Noise ratio113dB (8Ω, 1kHz, IHF-A)Frequency response10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA)Dumping factor370 or higher, JEITA (20Hz to 20kHz, Output impedance: 22mΩ, 8Ω loaded)Input sectionLINE IN (Balanced)ConnectorXLR (2: HOT) × 1 pairInput sensitivity1.3V (Output 8Ω, THD 1%)Input impedance10kΩ or higherLINE IN (Unbalance)ConnectorRCA Pin (gold-plated) × 1 pairInput sensitivity0.66V (Output 8Ω, THD 1%)Input impedance10kΩ or higherSpeaker outputsConnectorScrew type × 1 set (gold-plated, AWG8 and Banana-plug compatible)Compatible speaker impedanceStereo, Bi-amp modes4Ω to 16ΩBTL (Bridge) mode8Ω to 16ΩPowerAC220 to 240V, 50Hz (UK/Europe)Power consumption106WStandby power0.1W or less (at Auto power-saving mode)Overall dimensions290 × 84.5 × 271 mm / 11.4" × 3.3" × 10.7" (W × H × D)Weight4.4kg / 9.7 lbs.Included accessoriesPower code, Owner's manual (incl. Warranty card)
* Design and specifications may subject to change without notice.
* RoHS complied
