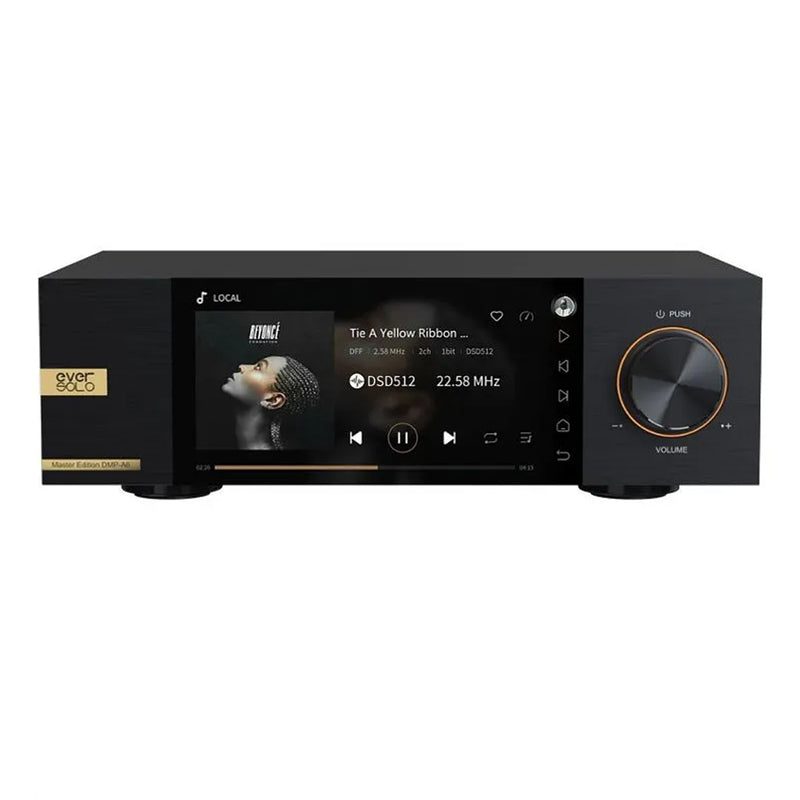

EverSolo DMP-A6 Master Edition Network Audio Streamer with DAC

Presenting the DMP-A6 Master Edition. This streamer features several upgrades over the standard edition DMP-A6, particularly when it comes to digital to analog conversion and output:

• An improved clock system, with two Accusilicon Femtosecond oscillators for greater noise reduction and improved jitter.
• Upgraded OPA1612 op-amps with ultra-low noise and low distortion (0.000015% at 1kHZ).
• Exclusive gold-plating on the faceplate.

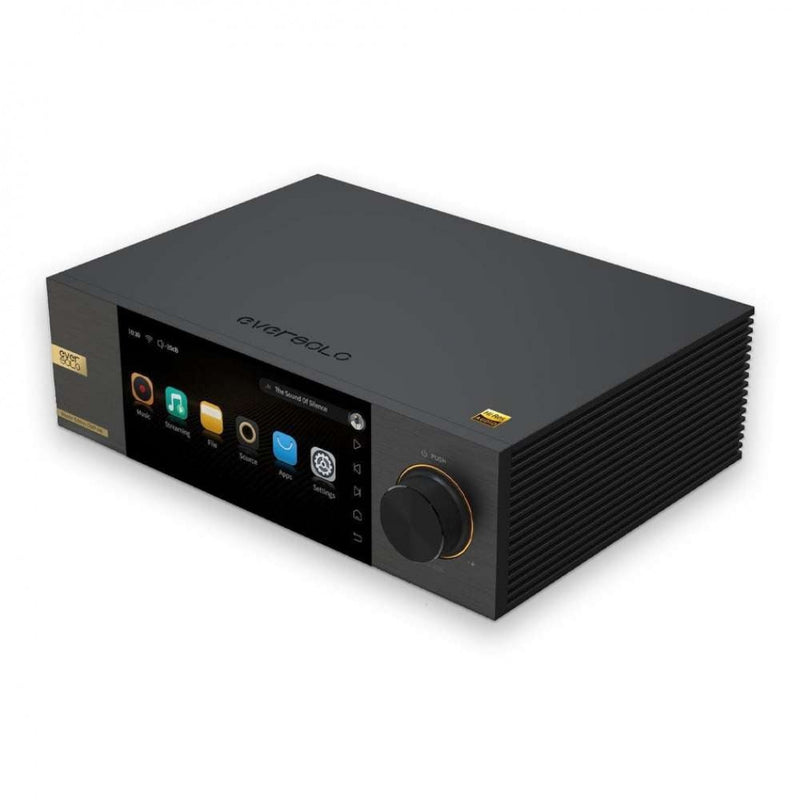

Following years of development, DMP-A6 marks the beginning of a new streaming era.An all-in-one player with quad-core processor tailored for lossless music playback. Everything here has been designed for superior audio performance. Dual high-resolution DACs. Fully balanced circuitry. Rich digital inputs and outputs. It all comes packaged in a stunning aluminum design with large 6-inch touchscreen, convenient app control, local music management, and access to a wide variety of streaming platforms.

• Solid aluminum alloy chassis, brushed panel.

• Quad-core ARM Cortex-A55 professional processor.

• 6" large LCD colour touchscreen, easy control.

• Based on Android 11, a deeply tailored system focused on music.

• 4GDDR+32GeMMC large memory for applications.

• Support M.2 NVME 3.0 SSD (not included), up to 4TB.

• 2x ES9038Q2M DAC for independent stereo decoding.

• Supports DSD512 Native, PCM768KHz@32Bit, MQA full decoding.

• 3rd generation XU316 audio processor for higher performance and speed.

• Low-jitter dual clock synchronous processing with higher accuracy.

• Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.

• 2x DOH chips support HDMI DSD Native and D2P digital multi-channel output (up to 5.1).

• Qualcomm QCC5125 Bluetooth 5.0 module with aptX HD.

• Low noise, high quality power supply, providing pure power source for audio circuits.

• Supports mastering audio formats DSD (.dsf/.dff/.ios/.dst), APE, FLAC, WAV, MQA, and more.

• Supports two-channel and multi-channel Gapless playback (FLAC,WAV).

• Personalized music management, lyric matching and music data matching through select apps.

• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.

• Supports direct audio in 3rd party apps, such as Apple Music hi-res direct output.

• USB, Optical, Coaxial, HDMI digital audio bit-perfect output.
• Full MQA decoding and rendering support on Optical, Coaxial, and USB inputs.

• Supports external USB optical drives for CD disc playback and CD ripping.

• Music services include Tidal, Qobuz, Amazon, Spotify, Apple Music, and more.

• Also supports Spotify Connect, Tidal Connect, Apple AirPlay 2, and DLNA for playback from your smart device.
• Supports NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN.
• Built-in SMB network media sharing service for easy local media sharing.

• Exclusive EverSolo mobile app for Android/iOS mobile phones and tablets mirrors the onboard touchscreen interface.

Streaming Services at Your FingertipsThe DMP-A6 directly incorporates popular music services like Tidal, Qobuz, Amazon Music, and more. You can also take advantage of numerous high-quality online music services through their third-party apps, including Spotify and Apple Music. Navigate it all directly via DMP-A6's touchscreen, or use the EverSolo app. Network StreamingRoon Ready, Spotify Connect, Tidal Connect, DLNA, and AirPlay are supported by the DMP-A6. High quality music can be streamed from devices on your network, make it simpler to enjoy online music services and easier to playback your favourite songs at home.Local Library PlaybackEversolo Music Library provides excellent local music playback performance, while also greatly improving your file management. It can add music files from a local hard drive or network storage and automatically retrieve music metadata from the cloud to build a custom music library by matching artists, albums, local CUE files, and more; songs are automatically displayed in categories based on genres, albums, artists and sample rates. This makes it easier than ever to searching through your music library.Multiple Network ProtocolsDMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same network. Even high data rate DSD512 master files can be played without stuttering, provided your network is stable and up to the task.Add Your Own Hard DriveA M.2 NVME 3.0 2280 SSD (solid state drive) slot is built in to allow installation of a solid state drive. The maximum storage is 4TB. Faster, stable, and without noise, this adds flexibility should you be interested in high-quality local music playback.Media Management SystemThe DMP-A6 offers a robust media management system that enables editing operations for local hard drive and network storage devices. Copying, pasting, cutting, and deleting are all possible without having to use your computer. The USB OT port can be configured as USB OTG, making it easy to connect a PC to DMP-A6 via USB cable for local file copying and management. Internal SMB sharing functionality allows you to share media files from a connected mobile device or internal SSD to other media playback devices on your network. This effectively means the DMP-A6 itself can be used as a network storage drive, in addition to being used for playback.CD Playback and RippingThe DMP-A6 allows for CD playback by connecting a compatible external USB optical disc drive. The built-in CD Rip app adopts a data validation mechanism and error correction function to save audio data from CD losslessly. The application's algorithm intelligently matches CD album and song names (officially released CDs are required), losslessly rips tracks, and automatically generates album and artist info.Large LCD TouchscreenEquipped with a large 6" LCD high-definition touchscreen, DMP-A6 is a powerful streaming but remains intuitive to use. Thanks to an exquisite user interface, as well as on-screen touch controls for system settings, local music library management, and third-party app access, it's as smooth and easy to use as your smartphone.Smart Control AppAndroid, iPhone, and iPad control apps have been developed for the DMP-A6. In addition to basic playback control and system settings, they also support asynchronous viewing of music library data and menus, which is convenient for music playback and data searching. If you're far away from the DMP-A6, there's no worry — just use the app and its mirroring function to control the streamer using the interface you already know.VU MetersDon't just hear your music — enjoy it visually, too. Multiple dynamic VU meter designs elevate DMP-A6 even higher, a feature and design polish not often seen at this price point. A wonderful interactive experience is offered with real-time full-format music display, including DSD.Aluminum ChassisDMP-A6 is made of aviation-grade CNC aluminum, creating a stable chassis structure. Enjoy a combination of modern visual appearance and classic build quality, with brushed panels and a frosted anodized body.EOS Audio EngineEOS (Eversolo Original Sampling-Rate Audio Engine) has been developed by Eversolo engineers, with the goal of outputting the original sampling rate on the Android operating system. DMP-A6's playback completely bypasses typical Android SC restrictions, enabling the direct audio output of third-party apps such as Apple Music.Master Recording Playback and DecodingAlmost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel, and MQA.MQA Full DecodingDAC-Z6 includes MQA (Master Quality Authenticated) technology through USB, Optical, and Coaxial, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.Dual ES 9038Q2M DACsDMP-A6 features two ES9038Q2M DAC chips, with one DAC chip per channel for independent stereo D/A conversion. The design avoids interference between channels effectively, reduces the noise floor to 6dB, and improves signal-to-noise ratio and dynamic range. DSD512, PCM768 @32bit, and MQA hardware decoding are supported.Ideal ImplementationJust as — if not more — important as the DAC chips is how they've been implemented in a system. Thanks to EverSolo development engineers' rich experience in analog circuit design, DAC-Z6 has a professional-grade calibration and circuit design. The total harmonic distortion ratio which has been measured is -120dB (0.00009%), while signal-to-noise ratio and dynamic range are 128dB. These indicators are a core foundation for sound quality.Abundant Digital FiltersChoose from a variety of digital filter modes in the DAC setting menu to meet different demands and preferences. DMP-A6 features 7 PCM filters and 4 DSD filters from which to select.Qualcomm QCC5125 Bluetooth ModuleIn addition to wired inputs, DAC-Z6 also features a built-in Bluetooth audio receiver in the form of the Qualcomm QCC5125 module. Thanks to support for the full suite of SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, you'll know you're getting the best possible Bluetooth quality when you pair your mobile phone, tablet, or computer.XMOS 316 Processor for Format SupportThe 3rd generation XMOS 316 has faster speed and better USB bandwidth than previous processors, which ensures lossless transmission for high-definition audio data. The USB output supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial outputs support DSD64 (DoP) and PCM192@24Bit.Handpicked Audio ComponentsThe sound quality of DMP-A6 analog outputs is monitoring-grade. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA, and more. The goal is to provide more authentic and pure sound performance.Low Ripple Power ModuleA low-noise regulated power supply module and dedicated ultra low-noise audio filter capacitor are tailored for DMP-A6. It ensures cleaner power, less background noise, and clear musical detail.Fully Balanced Preamp CircuitDMP-A6's analog circuit adopts a fully balanced design, from the DAC chip all the way to the XLR and RCA stereo outputs. It provides better noise immunity, improves channel separation by eliminating shared loops, and ensures stronger and more consistent signal quality.Wide Variety of Inputs and OutputsXLR and RCA outputs are present to connect with your active speakers or amplifier. Just like that, you're streaming. Thanks to its suite of inputs, DMP-A6 can also be used to connect with various high-end audio devices. As a decoder, DMP-A6 can connect with audio source equipment like computers and mobile devices through Coaxial, Optical, USB Type-C inputs, and wirelessly via Bluetooth.

Specs

Model

EverSolo DMP-A6

Display Screen

6-inch (diagonal) LCD touchscreen

Internal Memory

4GDDR4 +32GeMMC

DAC

ES 9038Q2M x 2

Audio Processor

XMOS XU316

Op-amp Chips

OPA1612

Power Supply

Low noise switching power supply

SSD (sold separately)

M.2 NVME 3.0 2280 protocol, up to 4TB

Ethernet

RJ-45 (10/100/1000 Mbps)

WiFi

2.4G+5G dual band

Playback and DAC Decoding

Up to stereo DSD512, PCM 768KHz 32Bit, MQA

Bluetooth Audio Input

Qualcomm QCC5125 Bluetooth module, BT5.0

Supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

USB (USB-A, USB-C) Audio Input

USB Audio Compatibility: Windows (7, 10), Mac, Android, iOS

Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

Optical/Coaxial Audio Input

Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Optical/Coaxial Audio Output

Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

HDMI Audio Output

DSD64 Native multi-channel/PCM192KHz multichannel raw output(Up to 5.1)

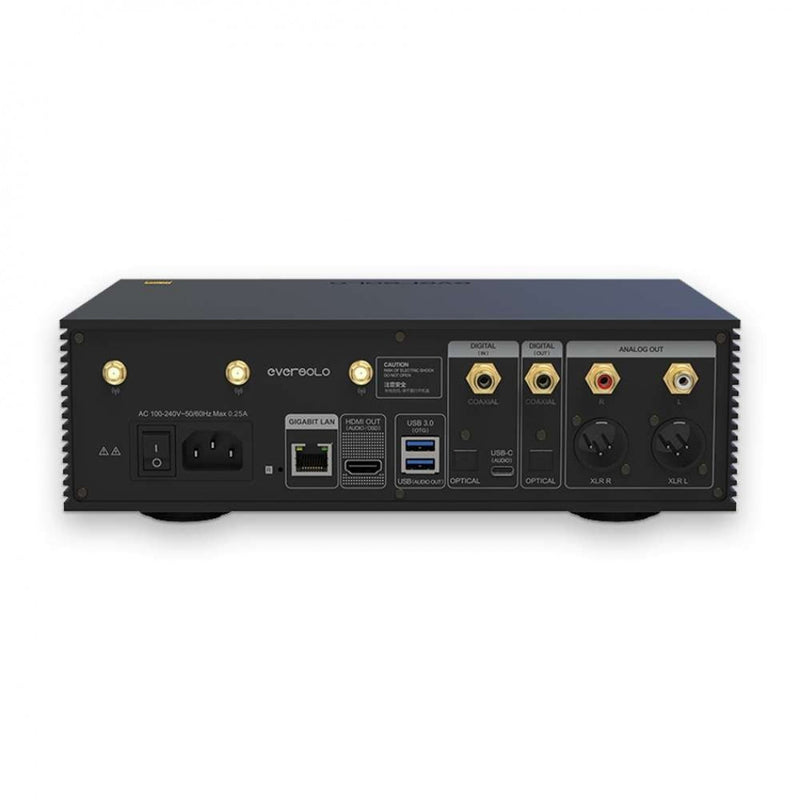

Analog Audio Outputs

XLR (balanced)

RCA

XLR Output

Output level: 5.2V

Frequency response: 20Hz~20KHz(±0. 15dB)

Dynamic range: > 128dB

SNR: >128dB

THD+N: <0.00009%(-120dB) @A-wt

Crosstalk: >-125dB

RCA Output

Output level: 2.6V

Frequency response: 20Hz~20KHz (±0. 2dB)

Dynamic range: > 124dB

SNR: >124dB

THD+N: <0.00011%(-119dB)@A-WT

Crosstalk: >-124dB

Power Input

AC 110~240V 50/60Hz

Rated Power

13W

Dimensions

L 187mm x W 270mm x H 90mm

L 7.36in x W 10.6in x H 3.54in

In the Box

DMP-A6, power cable, USB cable, screwdriver, user manual

Canadian Warranty

1-year
