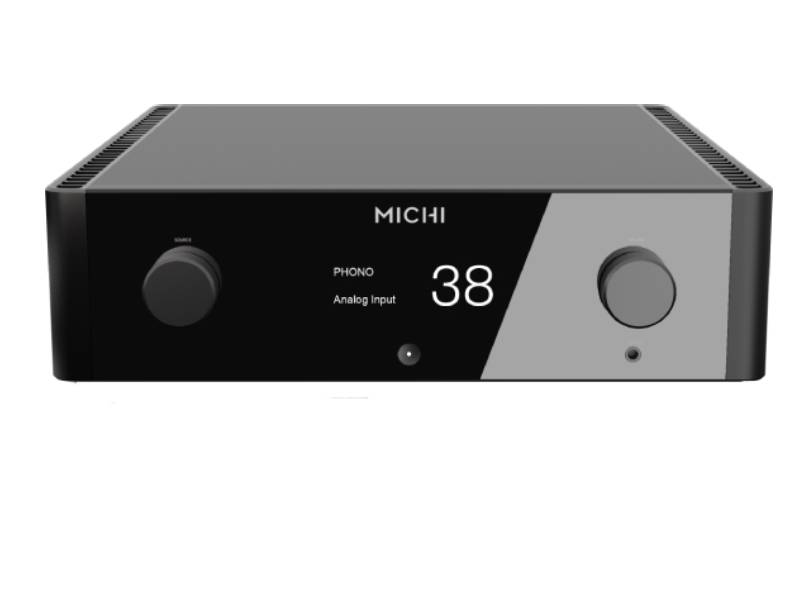

The Michi X3 Integrated Amplifier delivers uncompromised audio performance conveniently packaged in an elegant industrial design. The X3 delivers 350 Watts of Class AB output power into 4 ohm loads maintaining musical accuracy with exceptional acoustic detail from the Analog, Digital, PC-USB, apt-X Bluetooth and Moving Magnet Phono Stage source inputs.
Product Description
The Michi X3 Integrated Amplifier delivers uncompromised audio performance with a full array of source inputs including Analog, Digital, PC-USB, XLR, apt-X Bluetooth and a Moving Magnet Phono Stage connection for classic vinyl lovers. The X3 is conveniently packaged in an elegant industrial design delivering 350 Watts of Class AB power into 4 ohm speakers while maintaining musical accuracy with exceptional acoustic detail.

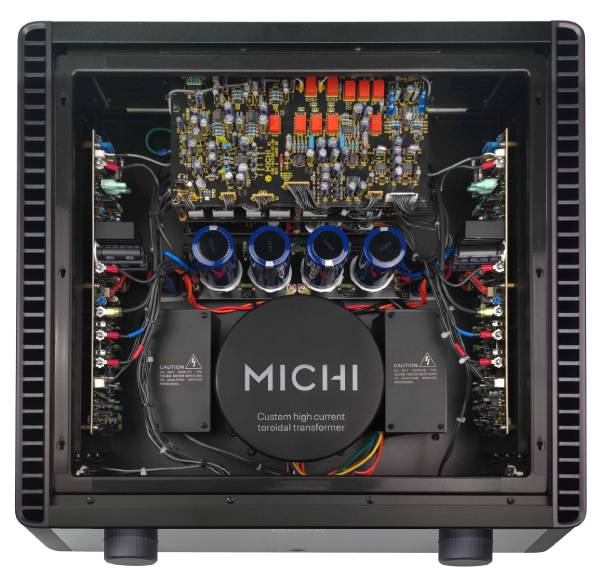

Every aspect of the X3 has been custom engineered with all critical circuits and components hand selected through rigorous listening sessions and bench testing. Engineered with over 58 years of audio engineering experience the X3 is sure to bring countless hours of entertainment.
SpecificationsDIMENSIONS (W × H × D)485 x 150 x 452mm , 19" × 6" × 17 3/4FRONT PANEL HEIGHT132 mm (5.25")POWER REQUIREMENTS120V, 60HzPOWER CONSUMPTION500WSTANDBY POWER CONSUMPTIONNormal: <0.5W , Network Wakeup: <2WNET WEIGHT28.9kg (63.7 lbs.)BTU RATING1303 BTU/hMAXIMUM POWER OUTPUT350W/Ch (4Ω)CONTINUOUS POWER OUTPUT200W/Ch (8Ω)TOTAL HARMONIC DISTORTION (THD)<0.008%FREQUENCY RESPONSELine Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB) , Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB) , Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)S/N RATIO (IHF "A" Weighted)Line Level Inputs: 102dB , Digital Inputs: 102dBPhono Input: 80dBINTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.03%DAMPING FACTOR (20Hz - 20kHz, 8Ω)350CHANNEL SEPARATION>55dBINPUT SENSITIVITYLine Level Inputs (RCA): 340mV , Line Level Inputs (XLR): 540mV , Phono Input (MM): 5.2mVINPUT IMPEDANCELine Level Inputs (RCA): 100kΩ , Line Level Inputs (XLR): 100kΩ , Digital Inputs: 75Ω , Phono Input (MM): 47kΩINPUT OVERLOADLine Level Inputs (RCA): 3.5V , Line Level Inputs (XLR): 5.5V , Phono Input: 60mVPREOUT LEVEL1.9VOUTPUT IMPEDANCE100ΩTONE CONTROLS±10dB at 100Hz / 10kHzCOAX/OPTICAL DIGITAL INPUT SIGNALSSPDIF LPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 1 (up to 24/96) , USB Audio Class 2 (up to 24/384)* , *Driver installation required DSD and DoP support
The Michi X3 Integrated Amplifier delivers uncompromised audio performance conveniently packaged in an elegant industrial design. The X3 delivers 350 Watts of Class AB output power into 4 ohm loads maintaining musical accuracy with exceptional acoustic detail from the Analog, Digital, PC-USB, apt-X Bluetooth and Moving Magnet Phono Stage source inputs.
Product Description
The Michi X3 Integrated Amplifier delivers uncompromised audio performance with a full array of source inputs including Analog, Digital, PC-USB, XLR, apt-X Bluetooth and a Moving Magnet Phono Stage connection for classic vinyl lovers. The X3 is conveniently packaged in an elegant industrial design delivering 350 Watts of Class AB power into 4 ohm speakers while maintaining musical accuracy with exceptional acoustic detail.
Every aspect of the X3 has been custom engineered with all critical circuits and components hand selected through rigorous listening sessions and bench testing. Engineered with over 58 years of audio engineering experience the X3 is sure to bring countless hours of entertainment.
SpecificationsDIMENSIONS (W × H × D)485 x 150 x 452mm , 19" × 6" × 17 3/4FRONT PANEL HEIGHT132 mm (5.25")POWER REQUIREMENTS120V, 60HzPOWER CONSUMPTION500WSTANDBY POWER CONSUMPTIONNormal: <0.5W , Network Wakeup: <2WNET WEIGHT28.9kg (63.7 lbs.)BTU RATING1303 BTU/hMAXIMUM POWER OUTPUT350W/Ch (4Ω)CONTINUOUS POWER OUTPUT200W/Ch (8Ω)TOTAL HARMONIC DISTORTION (THD)<0.008%FREQUENCY RESPONSELine Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB) , Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB) , Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)S/N RATIO (IHF "A" Weighted)Line Level Inputs: 102dB , Digital Inputs: 102dBPhono Input: 80dBINTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.03%DAMPING FACTOR (20Hz - 20kHz, 8Ω)350CHANNEL SEPARATION>55dBINPUT SENSITIVITYLine Level Inputs (RCA): 340mV , Line Level Inputs (XLR): 540mV , Phono Input (MM): 5.2mVINPUT IMPEDANCELine Level Inputs (RCA): 100kΩ , Line Level Inputs (XLR): 100kΩ , Digital Inputs: 75Ω , Phono Input (MM): 47kΩINPUT OVERLOADLine Level Inputs (RCA): 3.5V , Line Level Inputs (XLR): 5.5V , Phono Input: 60mVPREOUT LEVEL1.9VOUTPUT IMPEDANCE100ΩTONE CONTROLS±10dB at 100Hz / 10kHzCOAX/OPTICAL DIGITAL INPUT SIGNALSSPDIF LPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 1 (up to 24/96) , USB Audio Class 2 (up to 24/384)* , *Driver installation required DSD and DoP support
