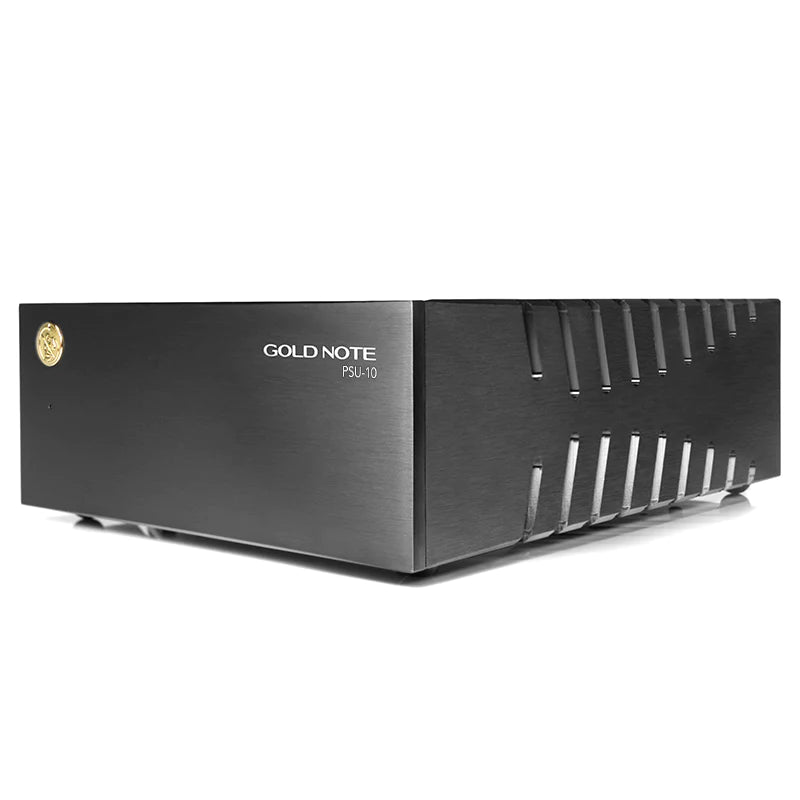

PSU-10 is a super inductive power supply exclusively designed for the PH-10 phono stage. PSU-10 has been engineered with the best quality audio-grade components to enhance the performance of PH-10 and improve your system even more: with the dedicated external power supply you will get the very best music experience out of your LPs.
The special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.
All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.
The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system.
With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.
The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.
Dedicated to the PH-10 phono stage, the PSU-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive dual choke special filter).
PSU-10
Four rail audio grade power supply
Four ultra low noise voltage regulator
+12V, +5V for digital
+/- 14V for analog with inductive noise remover
MAXIMUM VARIATION OF OUTPUT VOLTAGE
0,05 %
LINE NOISE REJECTION
>80dB
COMMON MODE NOISE REJECTION
>80dB
FULL POWER RESPONSE TIME
<2,5µsec
POWER SUPPLY
100V – 120V / 220V – 240V with automatic selection
Nominal power: 25W
Dynamic power: >50W
Stand by power: <1W
DIMENSIONS
200mm W 80mm H 260mm D
WEIGHT
3Kg net
4Kg boxed
FINISHES

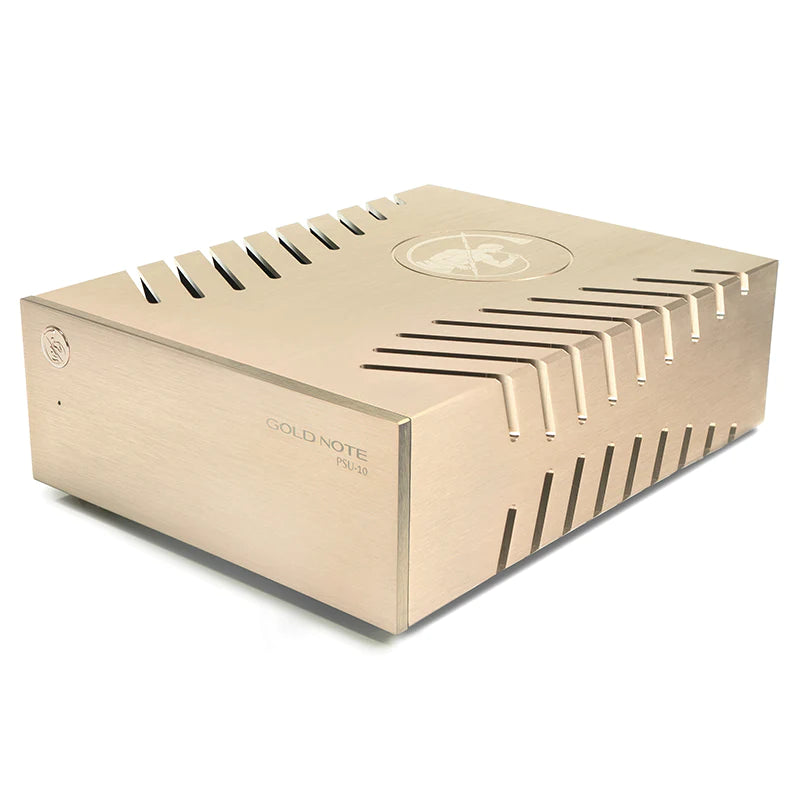

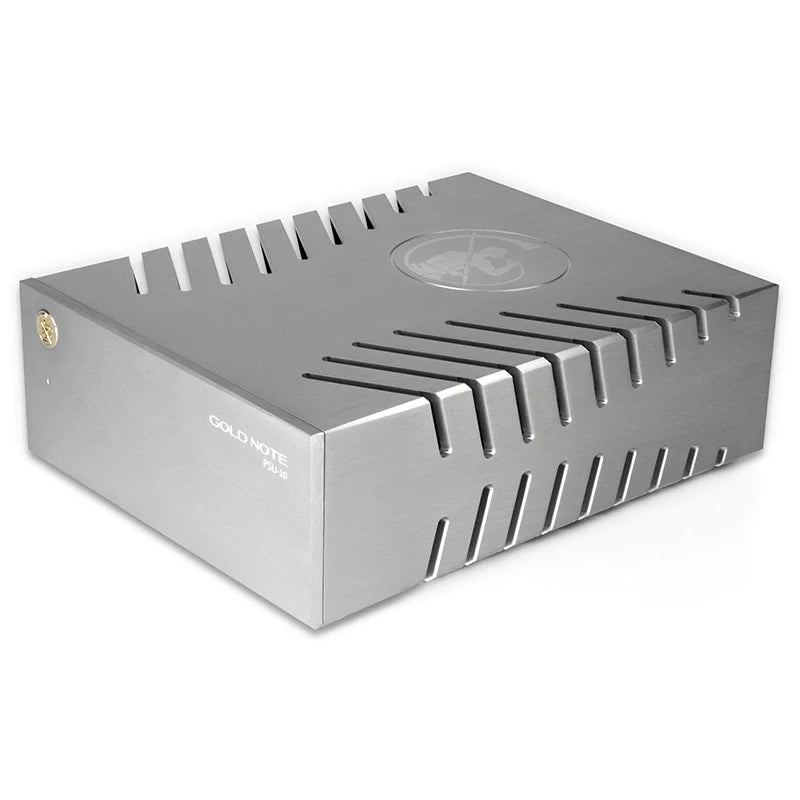

Brushed Aluminium in Black, Silver or Gold
PSU-10 is a super inductive power supply exclusively designed for the PH-10 phono stage. PSU-10 has been engineered with the best quality audio-grade components to enhance the performance of PH-10 and improve your system even more: with the dedicated external power supply you will get the very best music experience out of your LPs.
The special external power supplies have been designed to enhance your Gold Note system and are part of the modular design of the Gold Note creations.
All the special external power supplies have been developed with a Super Inductive Dual Choke hybrid design. They feature an inductive filter on the analogue stage and a dual choke design powered by a double inductor driving both the negative and positive high-current stages.
The Gold Note proprietary Dual Choke design perfectly filters the signal voltages to eliminate any interference and electrical noise from the AC power system.
With their massive power supply they provide a shield from the AC power grid. By achieving complete insulation, an ideal working environment is created for the electronics to perform at their best.
The large and ultra-clean power generated enhances noise reduction, greater dynamic, better resolution and finer audio details guaranteeing the best realism and musicality.
Dedicated to the PH-10 phono stage, the PSU-10 features a 4 power supply stages with 4 ultra-low noise voltage regulators. The device is powered by 4 transformers ( 3 dedicated to the power supply and 1 for the inductive dual choke special filter).
PSU-10
Four rail audio grade power supply
Four ultra low noise voltage regulator
+12V, +5V for digital
+/- 14V for analog with inductive noise remover
MAXIMUM VARIATION OF OUTPUT VOLTAGE
0,05 %
LINE NOISE REJECTION
>80dB
COMMON MODE NOISE REJECTION
>80dB
FULL POWER RESPONSE TIME
<2,5µsec
POWER SUPPLY
100V – 120V / 220V – 240V with automatic selection
Nominal power: 25W
Dynamic power: >50W
Stand by power: <1W
DIMENSIONS
200mm W 80mm H 260mm D
WEIGHT
3Kg net
4Kg boxed
FINISHES
Brushed Aluminium in Black, Silver or Gold
