GOLD NOTE - PH-10 THE PHONO STAGE

Vendor Gold Note
Regular price $2,700.00
Sale price $2,700.00 Regular price
Sale Call To Order
Unit price
/per

Product Details

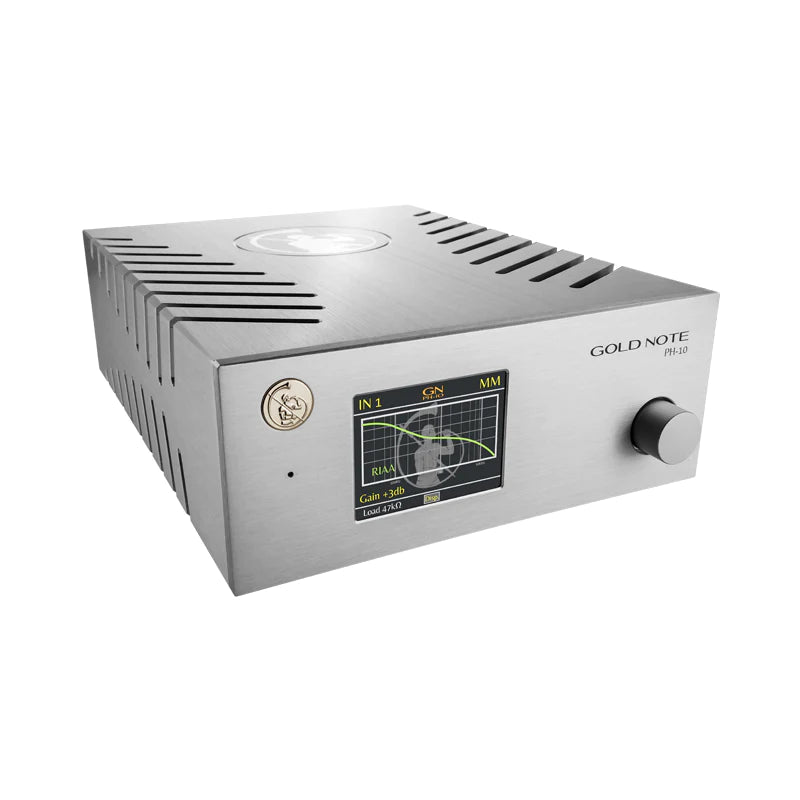

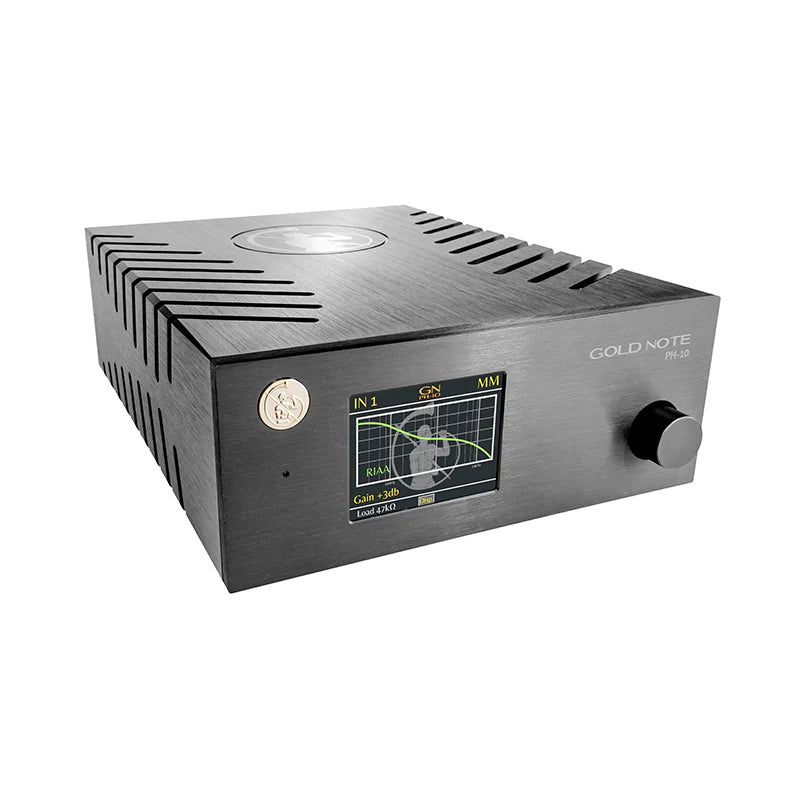

Designed to achieve the best possible sound and total control over the listening experience, on PH-10 everything has found its rightful place: on the front panel the large TFT display shows all the settings information through an intuitive and easy to read graphic. PH-10 also features our Single Knob Control technology, an elegant solution to browse and change functions instantly that lets you enjoy the maximum of your audio system by finding the perfect match between PH-10 and your MM or MC cartridges through intuitive gestures, without the need to disconnect cables or adjust switches. It has never been easier to extract the most detail from your vinyls!

THE MOST AWARDED PHONO STAGE

The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate the musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.

To control the PH-10 we developed the user friendly Single Knob Control (SKG). Combined with the color display this rotary joggle allows quick adjustments of any function in real time during music playback.

The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA-LONDON or the AMERICAN- CBS-COLUMBIA. All selection appears clearly as a graph on the large display. Each curve is enhanced by a modern Gold Note proprietary design that derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.

The perfect cartridge matching is guaranteed with up to 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and 4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB] that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.

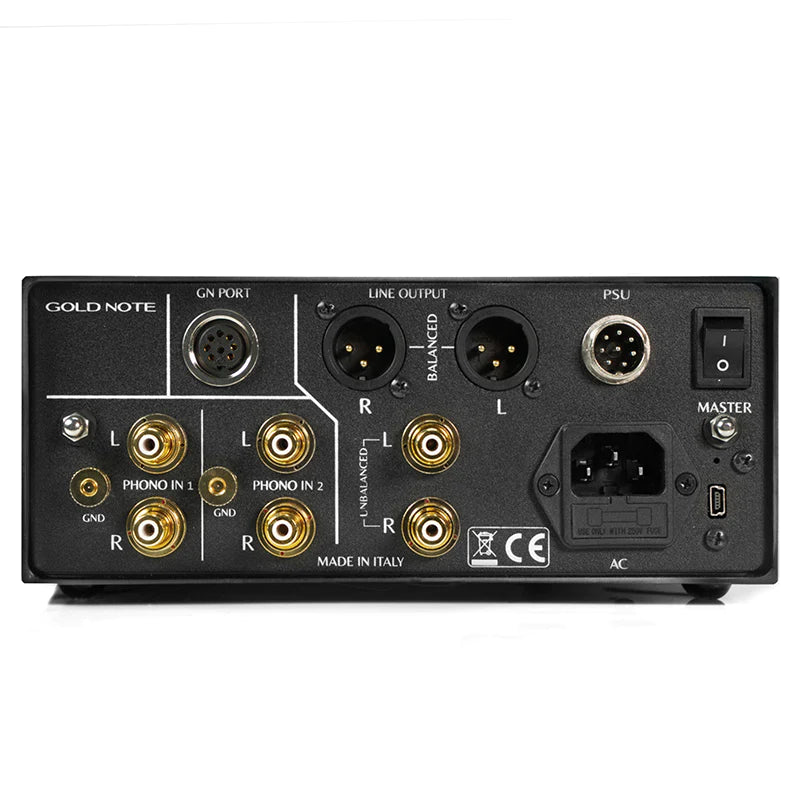

With his two separate RCA inputs the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off. This guarantees to the audiophile a unique flexibility and impressive user-friendliness.

To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three-dimensionality sound.

Specifications

ANALOGUE INPUTS

two independent stereo RCA for MM/MC

ANALOGUE OUTPUTS

Stereo unbalanced RCA and balanced XLR

SUBSONIC FILTER

10Hz/36dB octave

TOTAL HARMONIC DISTORTION THD

<0.05%

SIGNAL TO NOISE RATIO

-89dB

DYNAMIC RESPONSE

105dB

FREQUENCY RESPONSE

20Hz – 20KHz
[Enhanced 20Hz – 50KHz] @ +/- 0.3dB

LINE OUTPUTS LEVEL (FIXED)

Stereo RCA @ 2V and balanced XLR @4V

INPUT CAPACITANCE MM

220pF

INPUT SENSITIVITY

0.1mV MC up to 7.0mV MM

INPUT IMPEDANCE

9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]

GAIN

45/65dB (+6dB/-3dB)

POWER SUPPLY

100-120V / 220-240V, 50/60Hz
Power consumption: 10W Super Linear supply
Standby consumption: < 0,5W

DIMENSIONS

200mm W 80mm H 260mm D

WEIGHT

3Kg net
4Kg boxed

FINISHES

Brushed Aluminium Black, Gold or Silver


Details

Product Details

Designed to achieve the best possible sound and total control over the listening experience, on PH-10 everything has found its rightful place: on the front panel the large TFT display shows all the settings information through an intuitive and easy to read graphic. PH-10 also features our Single Knob Control technology, an elegant solution to browse and change functions instantly that lets you enjoy the maximum of your audio system by finding the perfect match between PH-10 and your MM or MC cartridges through intuitive gestures, without the need to disconnect cables or adjust switches. It has never been easier to extract the most detail from your vinyls!

THE MOST AWARDED PHONO STAGE

The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate the musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.

To control the PH-10 we developed the user friendly Single Knob Control (SKG). Combined with the color display this rotary joggle allows quick adjustments of any function in real time during music playback.

The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA-LONDON or the AMERICAN- CBS-COLUMBIA. All selection appears clearly as a graph on the large display. Each curve is enhanced by a modern Gold Note proprietary design that derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.

The perfect cartridge matching is guaranteed with up to 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and 4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB] that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.

With his two separate RCA inputs the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off. This guarantees to the audiophile a unique flexibility and impressive user-friendliness.

To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three-dimensionality sound.

Specifications

Specifications

ANALOGUE INPUTS

two independent stereo RCA for MM/MC

ANALOGUE OUTPUTS

Stereo unbalanced RCA and balanced XLR

SUBSONIC FILTER

10Hz/36dB octave

TOTAL HARMONIC DISTORTION THD

<0.05%

SIGNAL TO NOISE RATIO

-89dB

DYNAMIC RESPONSE

105dB

FREQUENCY RESPONSE

20Hz – 20KHz
[Enhanced 20Hz – 50KHz] @ +/- 0.3dB

LINE OUTPUTS LEVEL (FIXED)

Stereo RCA @ 2V and balanced XLR @4V

INPUT CAPACITANCE MM

220pF

INPUT SENSITIVITY

0.1mV MC up to 7.0mV MM

INPUT IMPEDANCE

9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]

GAIN

45/65dB (+6dB/-3dB)

POWER SUPPLY

100-120V / 220-240V, 50/60Hz
Power consumption: 10W Super Linear supply
Standby consumption: < 0,5W

DIMENSIONS

200mm W 80mm H 260mm D

WEIGHT

3Kg net
4Kg boxed

FINISHES

Brushed Aluminium Black, Gold or Silver
