Zpre3 Two Channel Zone Preamplifier Parasound Z

Vendor Parasound
Regular price $1,100.00
Sale price $1,100.00 Regular price
Sale Call To Order
Unit price
/per

Parasound Z is our line of ultra-compact components with unique features to solve many of your custom installation problems. They provide true high-end performance where space is tight and are a favorite for desktop listening.

Parasound Z Line Brochure

Zpre3

FeaturesSpecsReviewsSupport

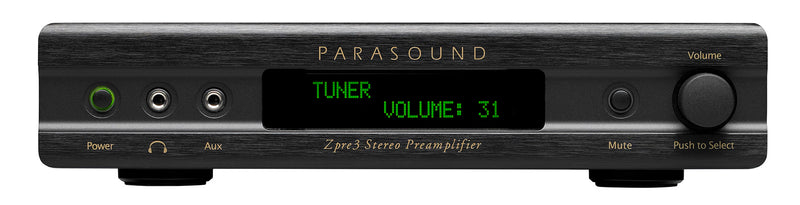

  • Front panel LCD function display with dimming
  • Automatic turn on volume memory

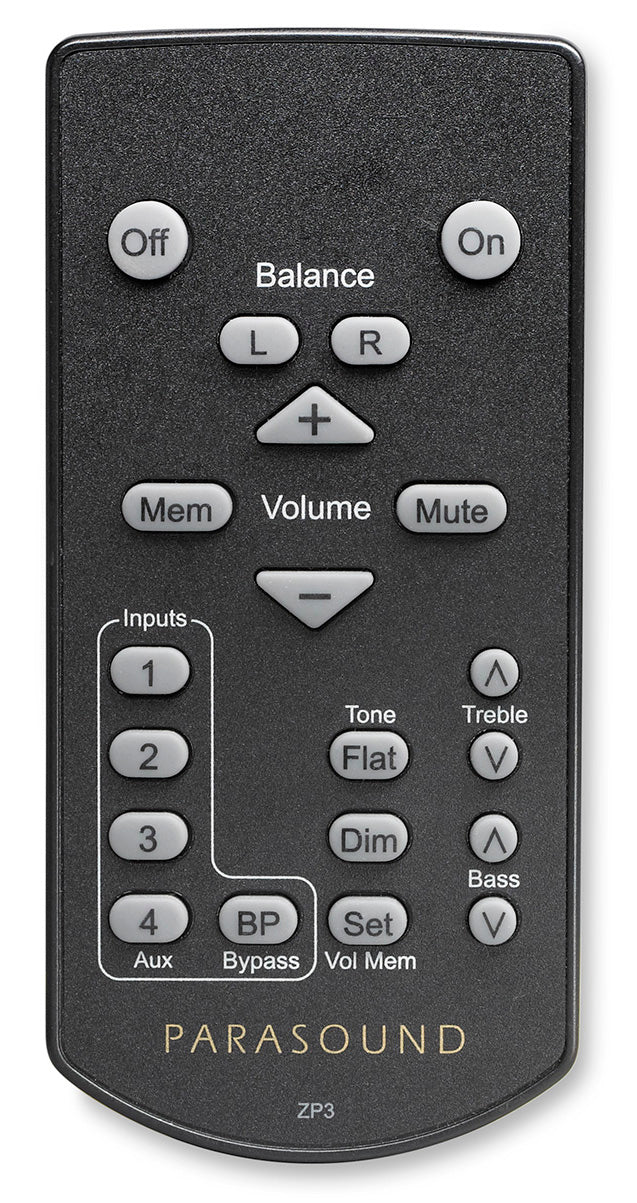

  • Favorite volume memory with remote control button
  • 2-way RS232 w/ exact volume control & feedback
  • Discrete commands for all functions
  • Rename inputs to match connected source
  • 5 audio inputs including a front panel Aux input
  • Bypass input integrates easily w/ a Sonos Connect® etc.
  • Bass, treble and balance adjustments by remote control
  • Variable and fixed stereo outputs
  • Variable and fixed mono/subwoofer outputs
  • 12dB auto gain offset at front panel AUX to match levels of other sources

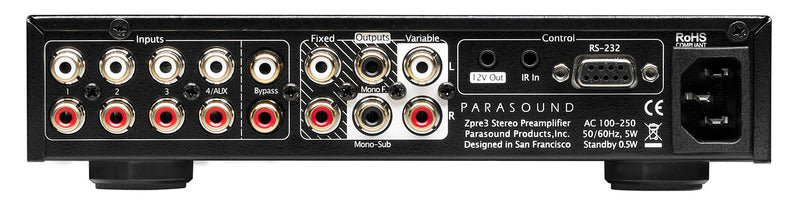

  • 12V trigger output and rear panel IR input
  • Control4 Driver available here
  • Rack mount kit sold separately (click to view)

Zpre3

FeaturesSpecsReviewsSupport

Frequency Response:
10 Hz - 40 kHz, +0/-0.5 dB

Total Harmonic Distortion: (20 Hz - 20 kHz)
<0.015%

Interchannel Crosstalk:
62 dB at 20 kHz

Input Sensitivity :
250 mV = 1 V output
Total gain = 12dB (volume set to 100)
Unity Gain = Volume set to 88
Maximum Output: 3.5 V

Input Impedance:
24k Ω

Output Impedance:
470 Ω

S/N Ratio:
>100 dB, input shorted, IHF A-weighted
>90 dB, input shorted, unweighted

DC Trigger Output:
12Vdc, 50ma

AC Power Requirement:
5 Watts powered on
0.5 Watts in standby
100 - 250 VAC 50/60 Hz

Dimensions
Width: 8.5" (220 mm)
Depth: 10" (254 mm)
Depth: 12" (305 mm) with AC cord and cables connected
Height, with feet: 2" (51 mm)
Height, without feet: 1.75" (45 mm), 1U

Weight
Net: 4.0 lbs (1.8 kg)
Shipping: 7.0 lbs (3.1 kg)

Rack Mount Accessory
May be Purchased Separately
ZRK

Details

Parasound Z is our line of ultra-compact components with unique features to solve many of your custom installation problems. They provide true high-end performance where space is tight and are a favorite for desktop listening.

Parasound Z Line Brochure

Zpre3

FeaturesSpecsReviewsSupport

  • Front panel LCD function display with dimming
  • Automatic turn on volume memory
  • Favorite volume memory with remote control button
  • 2-way RS232 w/ exact volume control & feedback
  • Discrete commands for all functions
  • Rename inputs to match connected source
  • 5 audio inputs including a front panel Aux input
  • Bypass input integrates easily w/ a Sonos Connect® etc.
  • Bass, treble and balance adjustments by remote control
  • Variable and fixed stereo outputs
  • Variable and fixed mono/subwoofer outputs
  • 12dB auto gain offset at front panel AUX to match levels of other sources
  • 12V trigger output and rear panel IR input
  • Control4 Driver available here
  • Rack mount kit sold separately (click to view)

Specifications

Zpre3

FeaturesSpecsReviewsSupport

Frequency Response:
10 Hz - 40 kHz, +0/-0.5 dB

Total Harmonic Distortion: (20 Hz - 20 kHz)
<0.015%

Interchannel Crosstalk:
62 dB at 20 kHz

Input Sensitivity :
250 mV = 1 V output
Total gain = 12dB (volume set to 100)
Unity Gain = Volume set to 88
Maximum Output: 3.5 V

Input Impedance:
24k Ω

Output Impedance:
470 Ω

S/N Ratio:
>100 dB, input shorted, IHF A-weighted
>90 dB, input shorted, unweighted

DC Trigger Output:
12Vdc, 50ma

AC Power Requirement:
5 Watts powered on
0.5 Watts in standby
100 - 250 VAC 50/60 Hz

Dimensions
Width: 8.5" (220 mm)
Depth: 10" (254 mm)
Depth: 12" (305 mm) with AC cord and cables connected
Height, with feet: 2" (51 mm)
Height, without feet: 1.75" (45 mm), 1U

Weight
Net: 4.0 lbs (1.8 kg)
Shipping: 7.0 lbs (3.1 kg)

Rack Mount Accessory
May be Purchased Separately
ZRK
