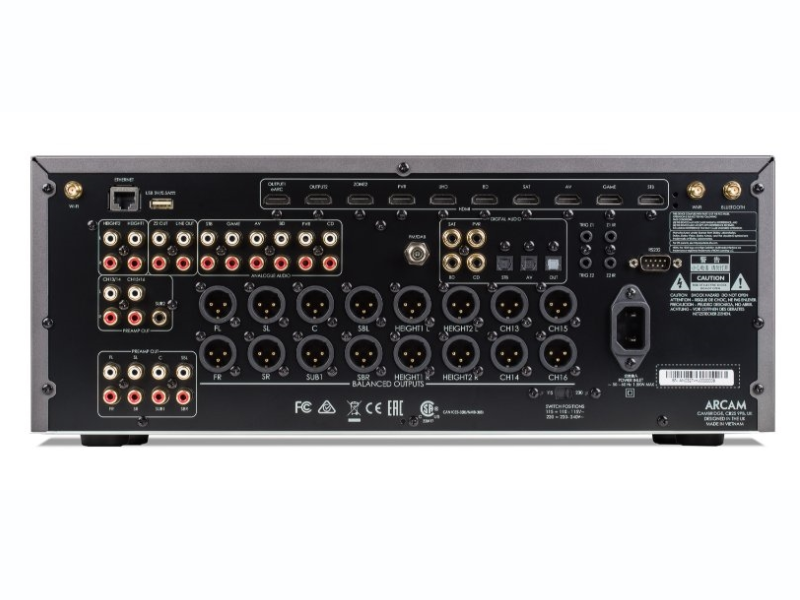

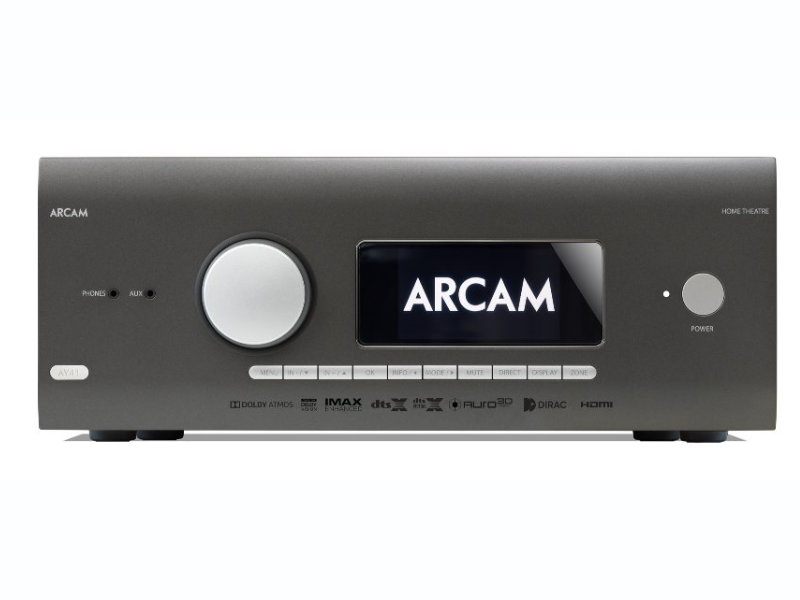

Arcam AV41 HDMI 2.1 AV Processor

Rich Musicality + Immersive Sound = Stunning Realism

The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-av41/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Product Details

• 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
• 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
• HDMI 2.1 with HDCP2.3
• All inputs support 8K@60fps and 4K@120fps
• Supports Dolby Vision, HDR10+, HDR10 and HLG
• Includes Dirac Live® room correction
• Ready for Dirac Live Bass Control*
• Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
• 16 transformerless balanced XLR output channels
• Pairs with PA720, PA240 & PA410 power amplifiers
• Wi-Fi / Ethernet, RS232 and IR control
• Google Chromecast® built-in for streaming audio
• Apple® Airplay2
• Bluetooth aptX®HD
• Free MusicLife iOS and Android UPnP app
• Roon Ready and supports MQA

Stereo Line InputsMaximum input4.5V rmsNominal sensitivity1V, 2V, 4V (user adjustable)Input impedance47kΩSignal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dBFrequency response20Hz—20kHz ± 0.2dBPreamplifier OutputsBalanced (XLR) nominal output level per channel2V RMS (max. 10V RMS)Single-ended (RCA) nominal output level per channel1V RMS (max. 5V RMS)Output impedance560ΩTHD+N (20Hz—20kHz)–100dBHeadphone outputMaximum output level into 32Ω5VrmsOutput impedance<100ΩGeneralMains voltage110–120V or 220–240V, 50–60HzPower consumption (maximum)50W (Thermal dissipation approx. 170 BTU/hour)Power consumption (idle, typical)40W (Thermal dissipation approx. 170 BTU/hour)Power consumption (standby)<0.5WDimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mmWeight (net)10.6kgWeight (packed)13.9kgSupplied accessoriesMains lead, Remote control with 2 x AAA batteries, Quick Start Guide (full manual online), DAB/FM aerial, 3 x Wi-Fi/Bluetooth antennas, Calibration microphone USB cable
